Cable lugs 45°

22 products

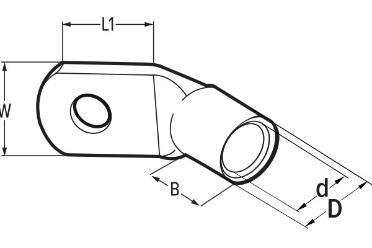

Photo	Reference	Description	Specifications	Packaging
	ΑΚ-ΑΚ-438	Cable lug 35mm² / Ø8mm	D:11, d:8.2, W:16.5, B:16, L:18mm	10/100/300
	ΑΚ-ΑΚ-439	Cable lug 35mm² / Ø10mm	D:11, d:8.2, W:16.5, B:16, L:22mm	10/100/300
	ΑΚ-ΑΚ-442	Cable lug 35mm² / Ø12mm	D:11, d:8.2, W:18, B:16, L:22mm	10/100/300
	ΑΚ-ΑΚ-443	Cable lug 50mm² / Ø8mm	D:12.5, d:9.5, W:18, B:20, L:18mm	10/50/150
	ΑΚ-ΑΚ-444	Cable lug 50mm² / Ø10mm	D:12.5, d:9.5, W:18, B:19, L:22mm	10/50/150
	ΑΚ-ΑΚ-445	Cable lug 50mm² / Ø12mm	D:12.5, d:9.5, W:18, B:20, L:22mm	10/50/150
	ΑΚ-ΑΚ-446	Cable lug 70mm² / Ø8mm	D:15, d:11.5, W:21.5, B:20, L:18mm	10/40/120
	ΑΚ-ΑΚ-447	Cable lug 70mm² / Ø10mm	D:15, d:11.5, W:21.5, B:20, L:22mm	10/40/120
	ΑΚ-ΑΚ-448	Cable lug 70mm² / Ø12mm	D:15, d:11.5, W:21.5, B:20, L:22mm	10/40/120
	ΑΚ-ΑΚ-449	Cable lug 95mm² / Ø10mm	D:17, d:13.5, W:24.7, B:22, L:21.8mm	10/40/80
	ΑΚ-ΑΚ-450	Cable lug 95mm² / Ø12mm	D:17, d:13.5, W:24.7, B:22, L:21.8mm	10/40/80
	ΑΚ-ΑΚ-451	Cable lug 120mm² / Ø10mm	D:20, d:15.6, W:29, B:27, L:32.5mm	10/20/60
	ΑΚ-ΑΚ-452	Cable lug 120mm² / Ø12mm	D:20, d:15.6, W:29, B:27, L:32.5mm	10/20/60
	ΑΚ-ΑΚ-453	Cable lug 150mm² / Ø12mm	D:21, d:16.5, W:30.4, B:32, L:33mm	10/20/40
	ΑΚ-ΑΚ-454	Cable lug 150mm² / Ø14mm	D:21, d:16.5, W:30.4, B:32, L:33mm	10/20/40
	ΑΚ-ΑΚ-455	Cable lug 185mm² / Ø12mm	D:23.6, d:18.4, W:34, B:34, L:35mm	10/20/40
	ΑΚ-ΑΚ-456	Cable lug 185mm² / Ø14mm	D:23.6, d:18.4, W:34, B:34, L:35mm	10/20/40
	ΑΚ-ΑΚ-457	Cable lug 240mm² / Ø12mm	D:26.4, d:21.2, W:38.5, B:37, L:35mm	5/30
	ΑΚ-ΑΚ-458	Cable lug 240mm² / Ø14mm	D:26.4, d:21.2, W:38.5, B:37, L:35mm	5/30
	ΑΚ-ΑΚ-459	Cable lug 240mm² / Ø16mm	D:26.4, d:21.2, W:38.5, B:38, L:35mm	5/30
	ΑΚ-ΑΚ-460	Cable lug 300mm² / Ø14mm	D:28.6, d:23.4, W:41.7, B:40, L:36mm	5/20
	ΑΚ-ΑΚ-461	Cable lug 300mm² / Ø16mm	D:28.6, d:23.4, W:41.7, B:40, L:36mm	5/20

22 of 22 products shown
