Cable lugs DIN 46235 with reinforced body

22 products

Photo	Reference	Description	Specifications	Packaging
	ΑΚ-ΑΚ-382	Cable lug 35mm² / Ø8mm	D:12.5, d:8.2, W:17.5, B:20, L:52mm	10/100/300
	ΑΚ-ΑΚ-383	Cable lug 35mm² / Ø10mm	D:12.5, d:8.2, W:19, B:20, L:54mm	10/100/300
	ΑΚ-ΑΚ-384	Cable lug 35mm² / Ø12mm	D:12.5, d:8.2, W:21, B:20, L:55mm	10/100/300
	ΑΚ-ΑΚ-385	Cable lug 50mm² / Ø8mm	D:14.5, d:10, W:20.3, B:28, L:62mm	10/50/150
	ΑΚ-ΑΚ-386	Cable lug 50mm² / Ø10mm	D:14.5, d:10, W:22, B:28, L:64mm	10/50/150
	ΑΚ-ΑΚ-387	Cable lug 50mm² / Ø12mm	D:14.5, d:10, W:24, B:28, L:65mm	10/50/150
	ΑΚ-ΑΚ-388	Cable lug 70mm² / Ø8mm	D:16.5, d:11.5, W:23.4, B:28, L:65mm	10/40/120
	ΑΚ-ΑΚ-389	Cable lug 70mm² / Ø10mm	D:16.5, d:11.5, W:23.4, B:28, L:67mm	10/40/120

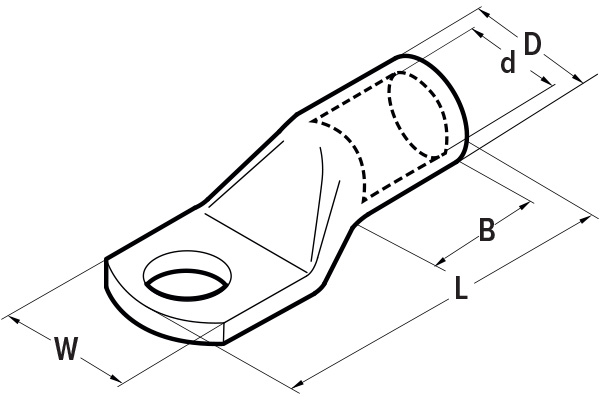

	ΑΚ-ΑΚ-390	Cable lug 70mm² / Ø12mm	D:16.5, d:11.5, W:23.4, B:28, L:68mm	10/40/120
	ΑΚ-ΑΚ-391	Cable lug 95mm² / Ø10mm	D:19, d:13.5, W:28, B:35, L:77mm	10/40/80
	ΑΚ-ΑΚ-392	Cable lug 95mm² / Ø12mm	D:19, d:13.5, W:28, B:35, L:78mm	10/40/80
	ΑΚ-ΑΚ-393	Cable lug 120mm² / Ø10mm	D:21, d:15.5, W:30, B:35, L:85mm	10/20/60
	ΑΚ-ΑΚ-394	Cable lug 120mm² / Ø12mm	D:21, d:15.5, W:30, B:35, L:86mm	10/20/60
	ΑΚ-ΑΚ-395	Cable lug 150mm² / Ø12mm	D:23.5, d:17, W:33.6, B:35, L:94mm	10/20/40
	ΑΚ-ΑΚ-396	Cable lug 150mm² / Ø14mm	D:23.5, d:17, W:33.6, B:35, L:97mm	10/20/40
	ΑΚ-ΑΚ-397	Cable lug 185mm² / Ø12mm	D:25.5, d:19, W:36.6, B:40, L:98mm	10/20/40
	ΑΚ-ΑΚ-398	Cable lug 185mm² / Ø14mm	D:25.5, d:19, W:36.6, B:40, L:101mm	10/20/40
	ΑΚ-ΑΚ-399	Cable lug 240mm² / Ø12mm	D:29, d:21.5, W:42, B:40, L:108mm	5/10/30
	ΑΚ-ΑΚ-400	Cable lug 240mm² / Ø14mm	D:29, d:21.5, W:42, B:40, L:108mm	5/30/120
	ΑΚ-ΑΚ-406	Cable lug 240mm² / Ø16mm	D:29, d:21.5, W:42, B:40, L:111mm	5/20
	ΑΚ-ΑΚ-408	Cable lug 300mm² / Ø14mm	D:32, d:24.5, W:46, B:50, L:119mm	5/20/80
	ΑΚ-ΑΚ-409	Cable lug 300mm² / Ø16mm	D:32, d:24.5, W:46, B:50, L:119mm	5/20/80

22 of 22 products shown
