Time relays

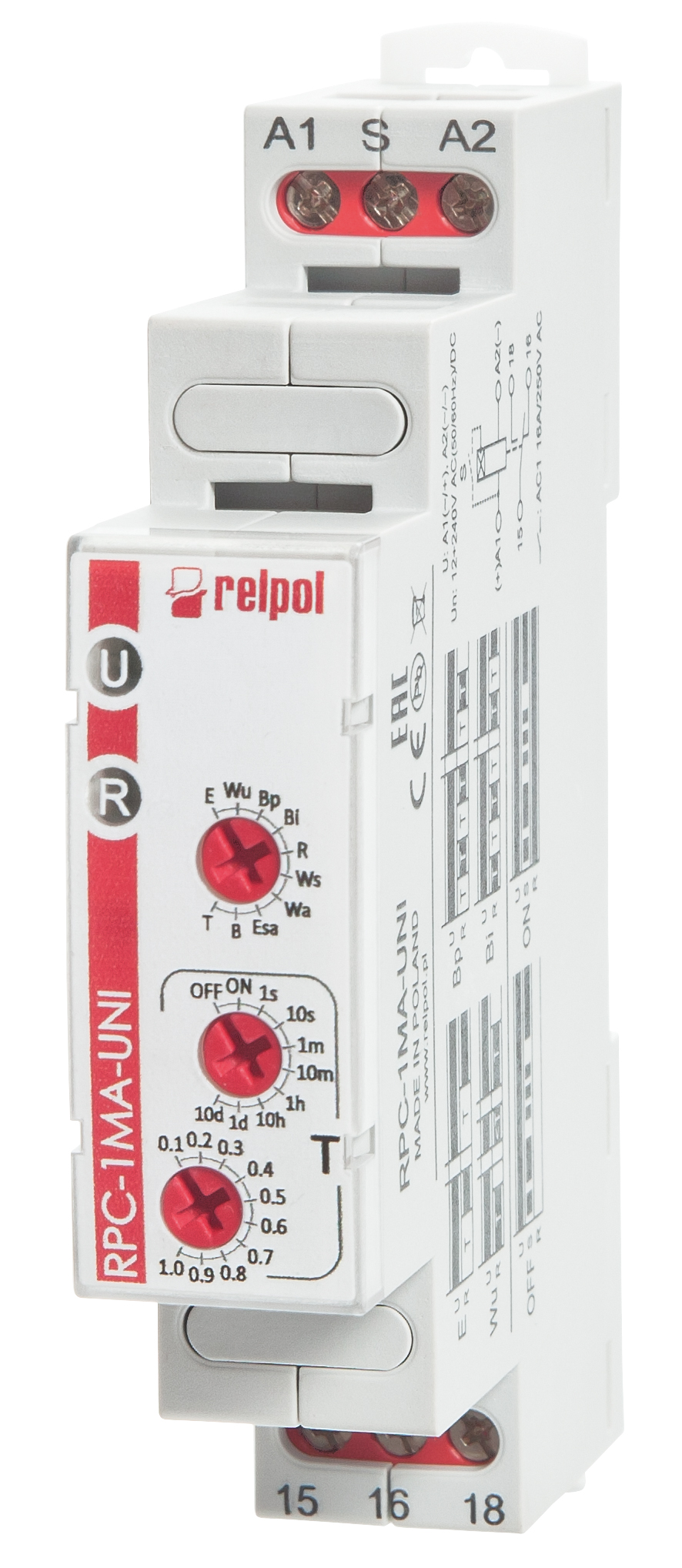

RPC

43 variants

Multifunction time relays - 10 time functions E, Wu, Bp, Bi, R, Ws, Wa Esa, B, T. 8 time ranges. Cadmium - free contacts 1 CO. Rated input voltage UNI 12...240VAC/DC 50/60 Hz

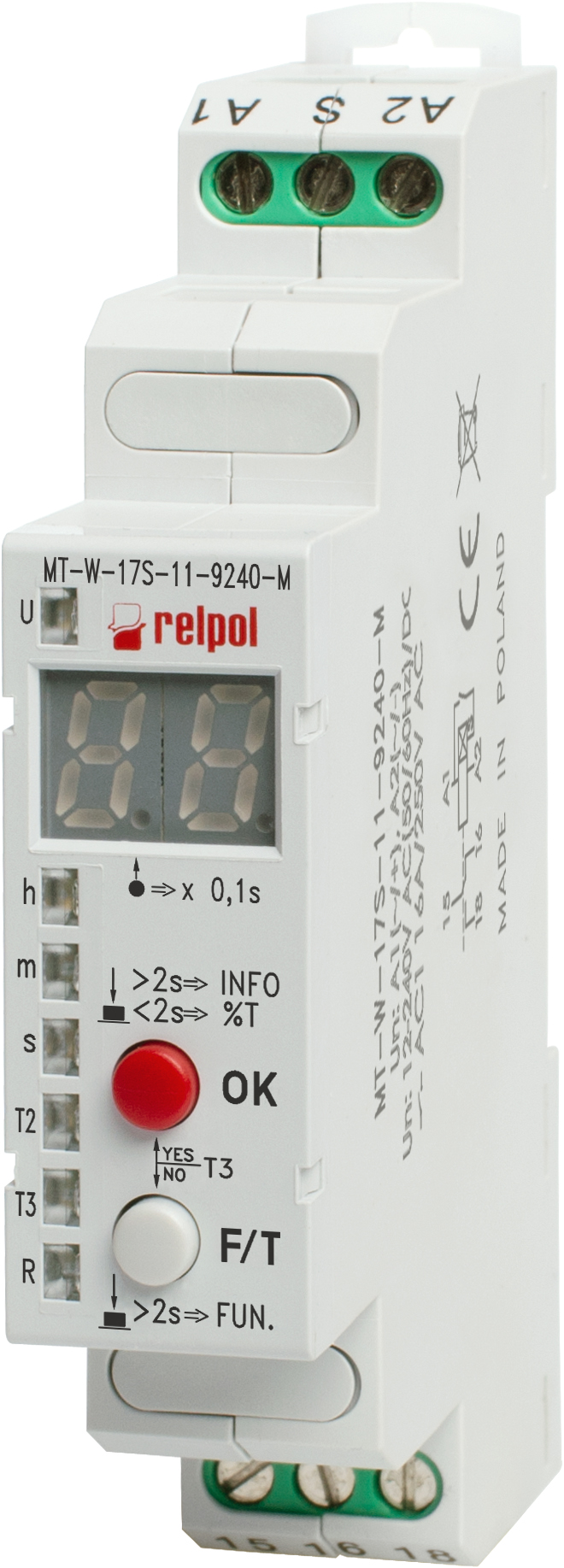

MT-W

1 variant

Time relays , MT-W-17S-11-9240-M, Universal, multifunction time relays with independently controled times T1, T2 and T3 (25 time functions + functions ON and OFF; quick times set with the accuracy of 0,1 s) . 1 CO ( SPDT), AgSnO2, 12...240V AC/DC, Rated load AC1 10 A, Rated load AC3 , Rated switching voltage 250 V AC, Operating temperature °C -20…+50, mounting on 35 mm rail

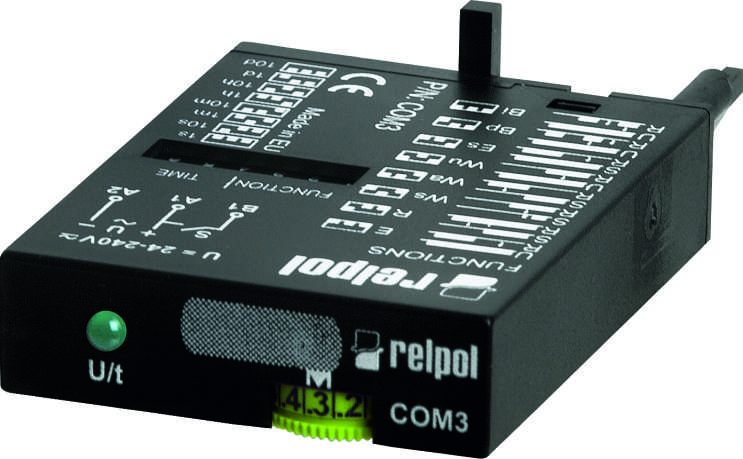

Time modules

1 variant

COM3 universal time modules. Multifunction time modules (8 time functions; 8 time ranges). AC/DC input voltages. Mounting: combinable to relay R15 - 3 CO (2 CO) with plug-in socket GZP11 (GZP8)

PIR15

26 variants

Time relays , PIR152-024AC-00T, 2 CO ( DPDT), AgNi, 24V AC, Rated load AC1 10 A, Rated load AC3 370 W, Rated switching voltage 250 V AC, Operating temperature °C -40…+55, mounting on 35 mm rail
