Relays for railroad industry - interface

PI railway

4 variants

Relays for railroad industry - interface PI84T-024DC-M41G-TS-3012-V0, 2 CO. Contact material: AgSnO2. Voltage coil 24 V DC. Rated load AC1 8 A / 250 V AC. Mounting: mounting on 35 mm rail. Cover protection category IP 20.

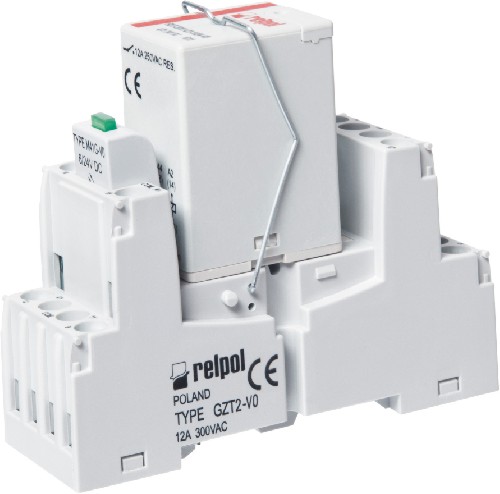

PIR railway

6 variants

Relays for railroad industry - interface PIR2T-024DC-M41G-V0, 2 CO. Contact material: AgNi. Voltage coil 24 V DC. Rated load AC1 12 A / 250 V AC. Mounting: mounting on 35 mm rail. Cover protection category IP 20.

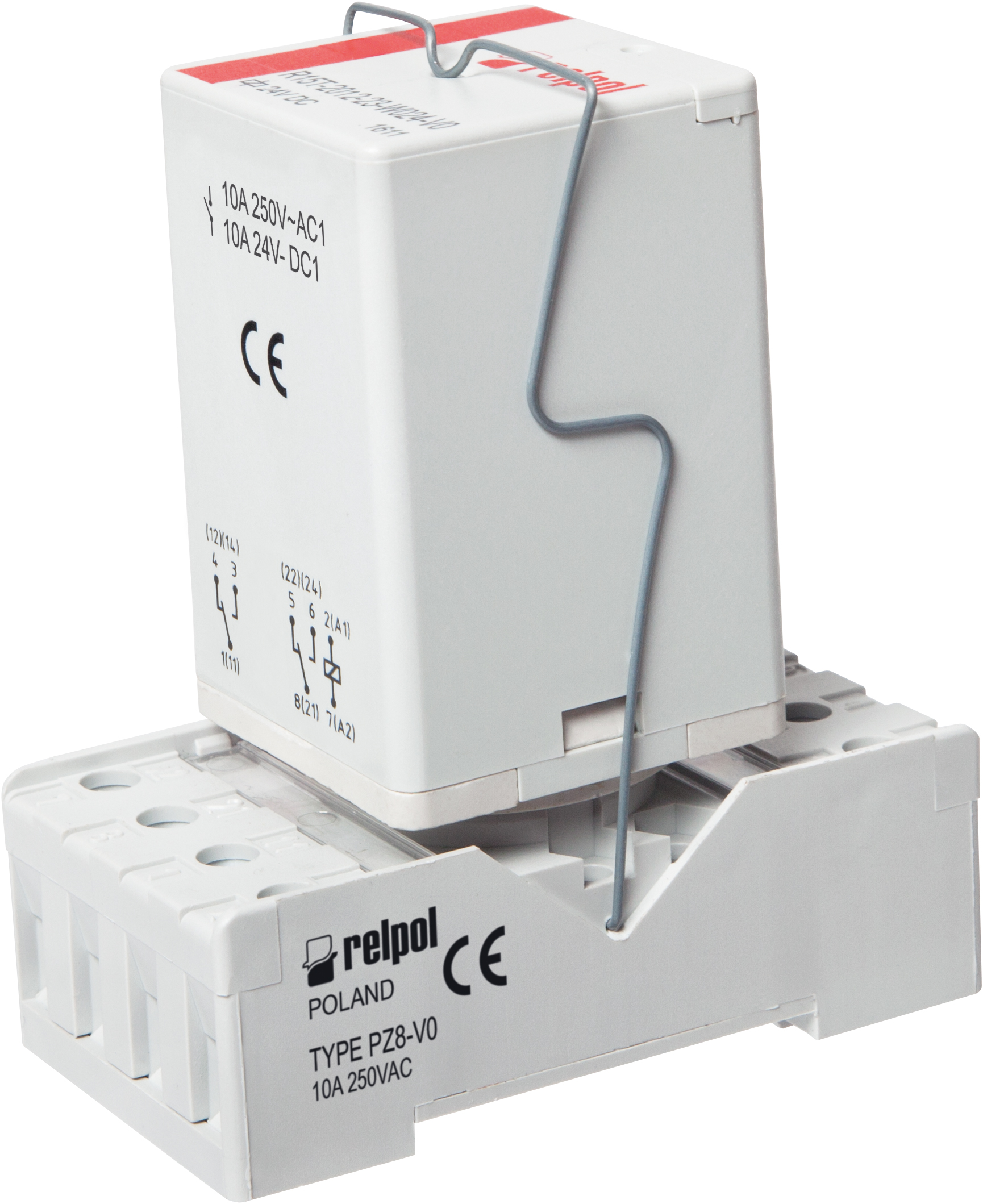

PIR15 railway

4 variants

Relays for railroad industry - interface PIR152T-024DC-V0, 2 CO. Contact material: AgNi. Voltage coil 24 V DC. Rated load AC1 10 A / 250 V AC. Mounting: mounting on 35 mm rail. Cover protection category IP 20.

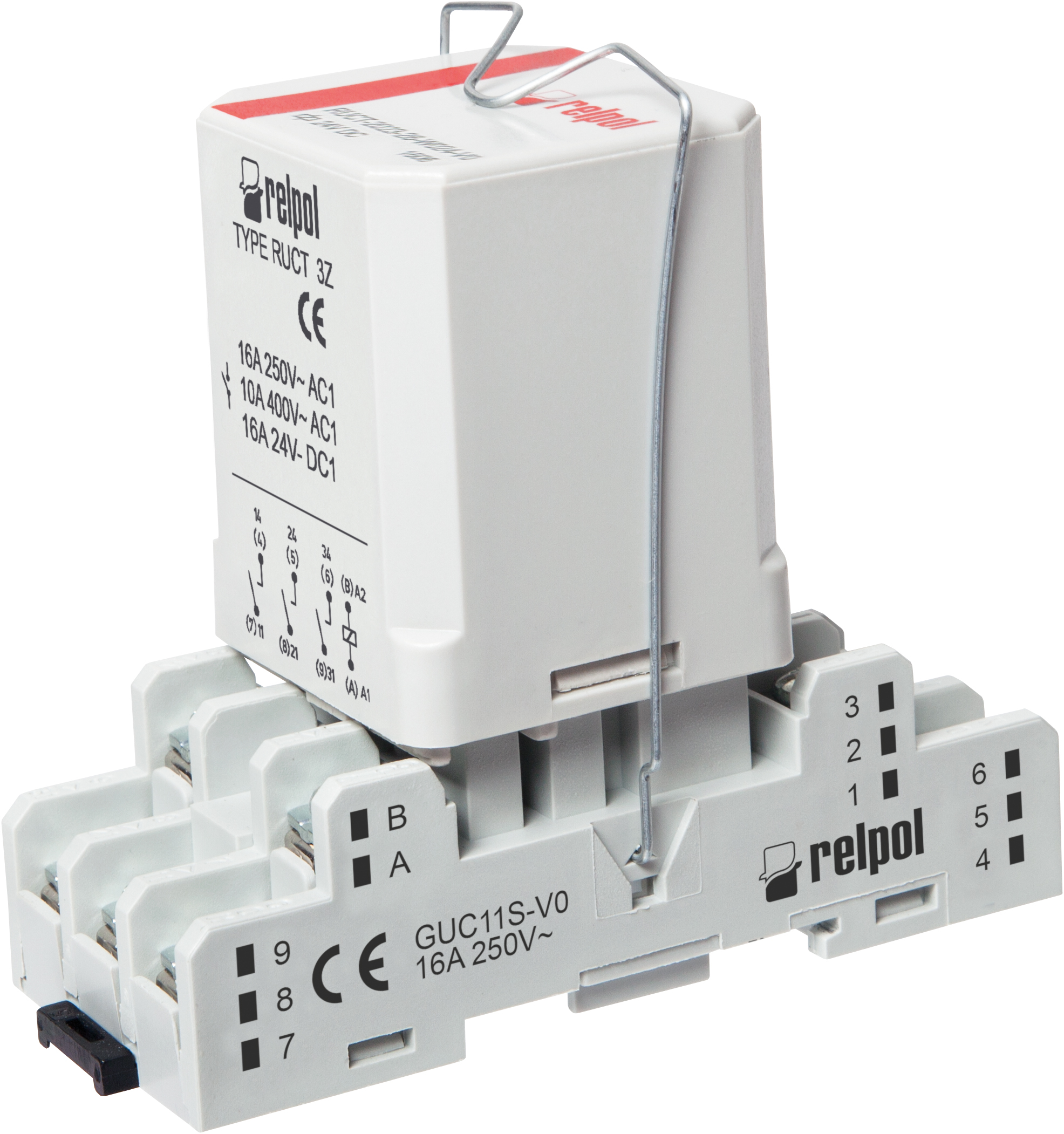

RUC railway

4 variants

Relays for railroad industry - interface PRUCT-2023-26-W024-V0, 3 NO. Contact material: AgNi. Voltage coil 24 V DC. Rated load AC1 16 A / 250 V AC. Mounting: mounting on 35 mm rail. Cover protection category IP 20.

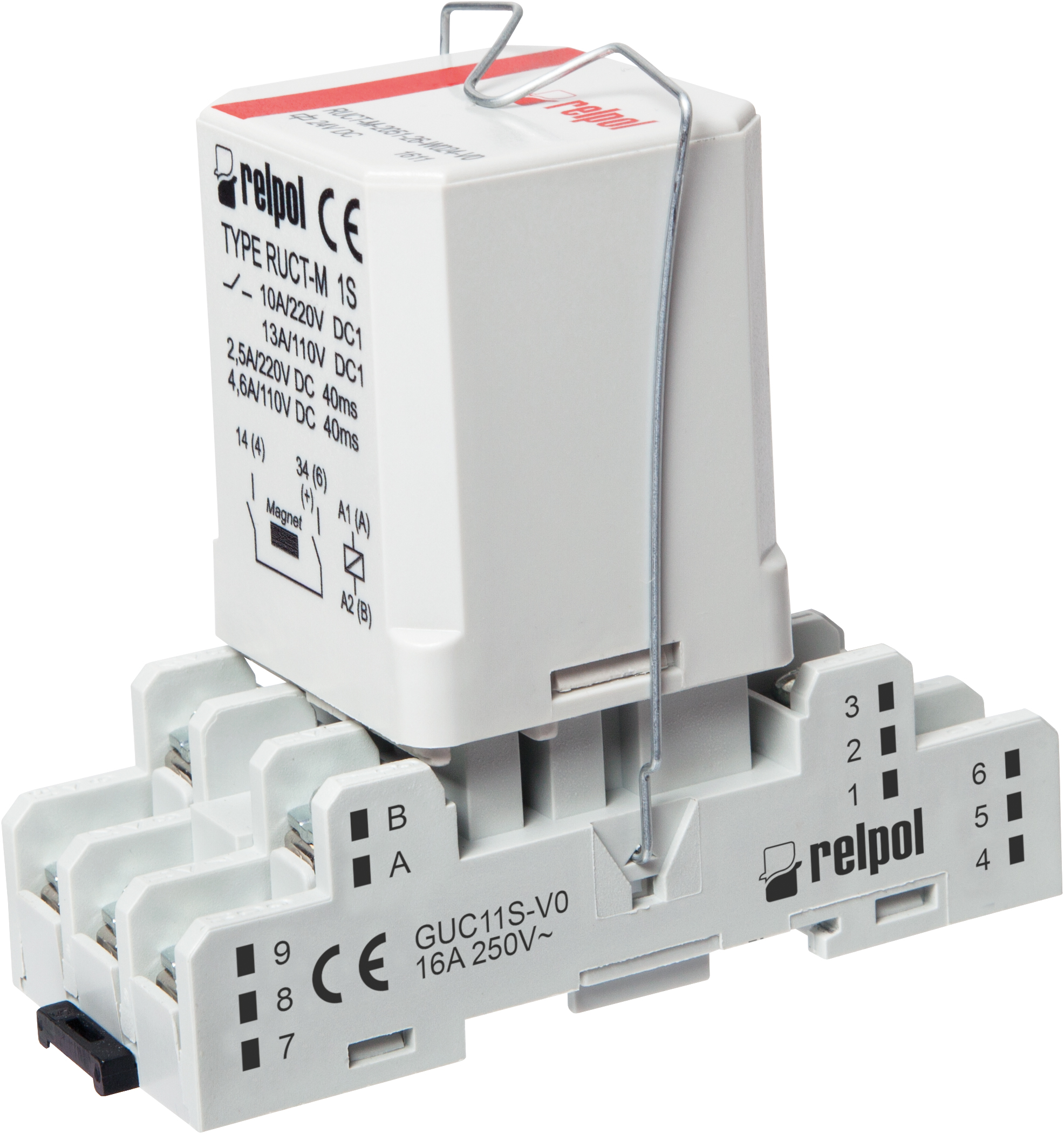

RUC-M railway

4 variants

Relays for railroad industry - interface PRUCT-M-2051-26-W024-V0, 1 NO (double-break), contact gap ≥ 5 mm (2,5+2,5). Contact material: AgNi. Voltage coil 24 V DC. Rated load AC1 16 A / 250 V AC. Mounting: mounting on 35 mm rail. Cover protection category IP 20.

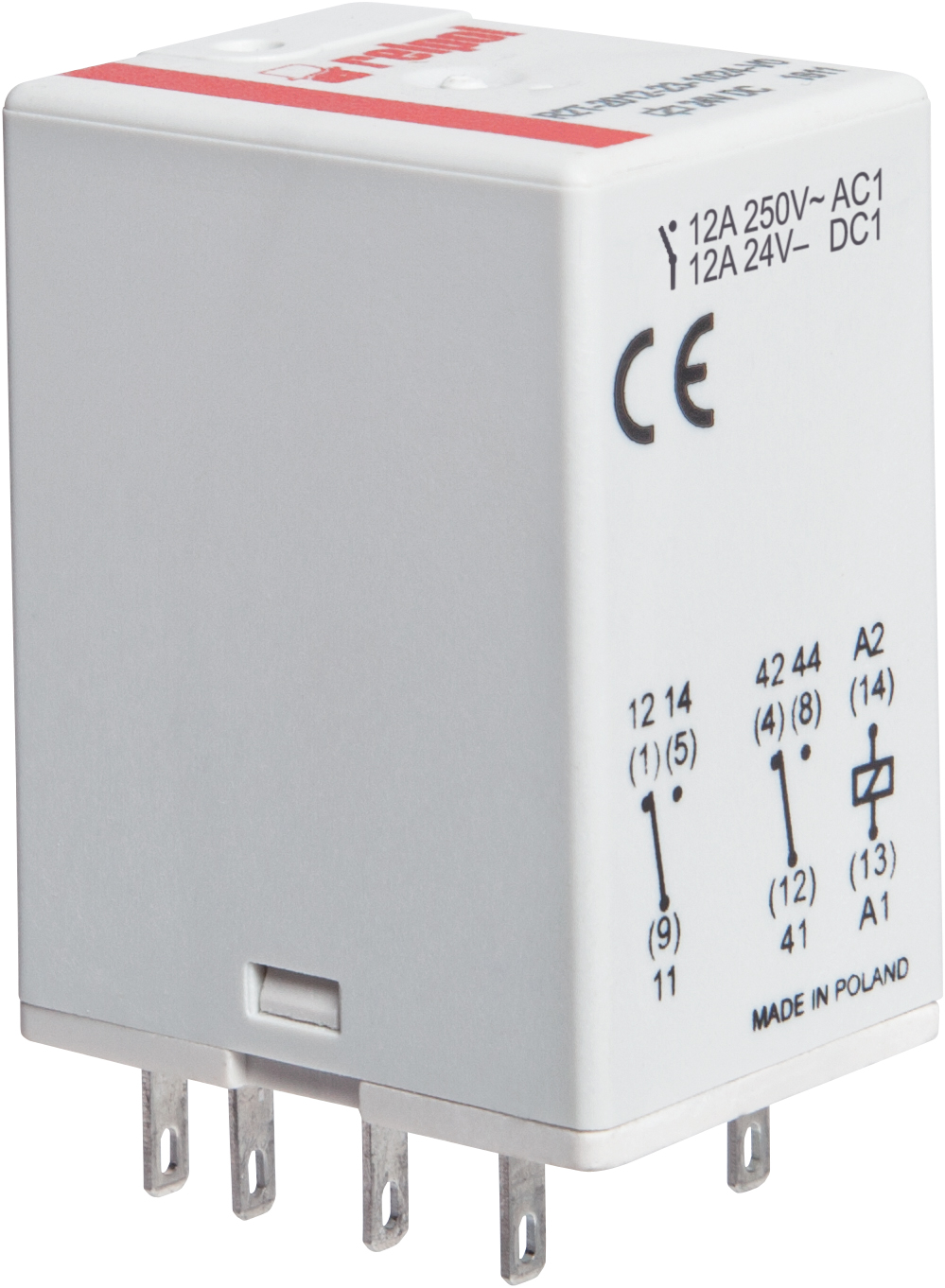

R2T railway

2 variants

Relays for railroad industry - interface R2T-2012-23-1024-V0, 2 CO. Contact material: AgNi. Voltage coil 24 V DC. Rated load AC1 12 A / 250 V AC. Mounting: for plug-in sockets. Cover protection category IP 20.

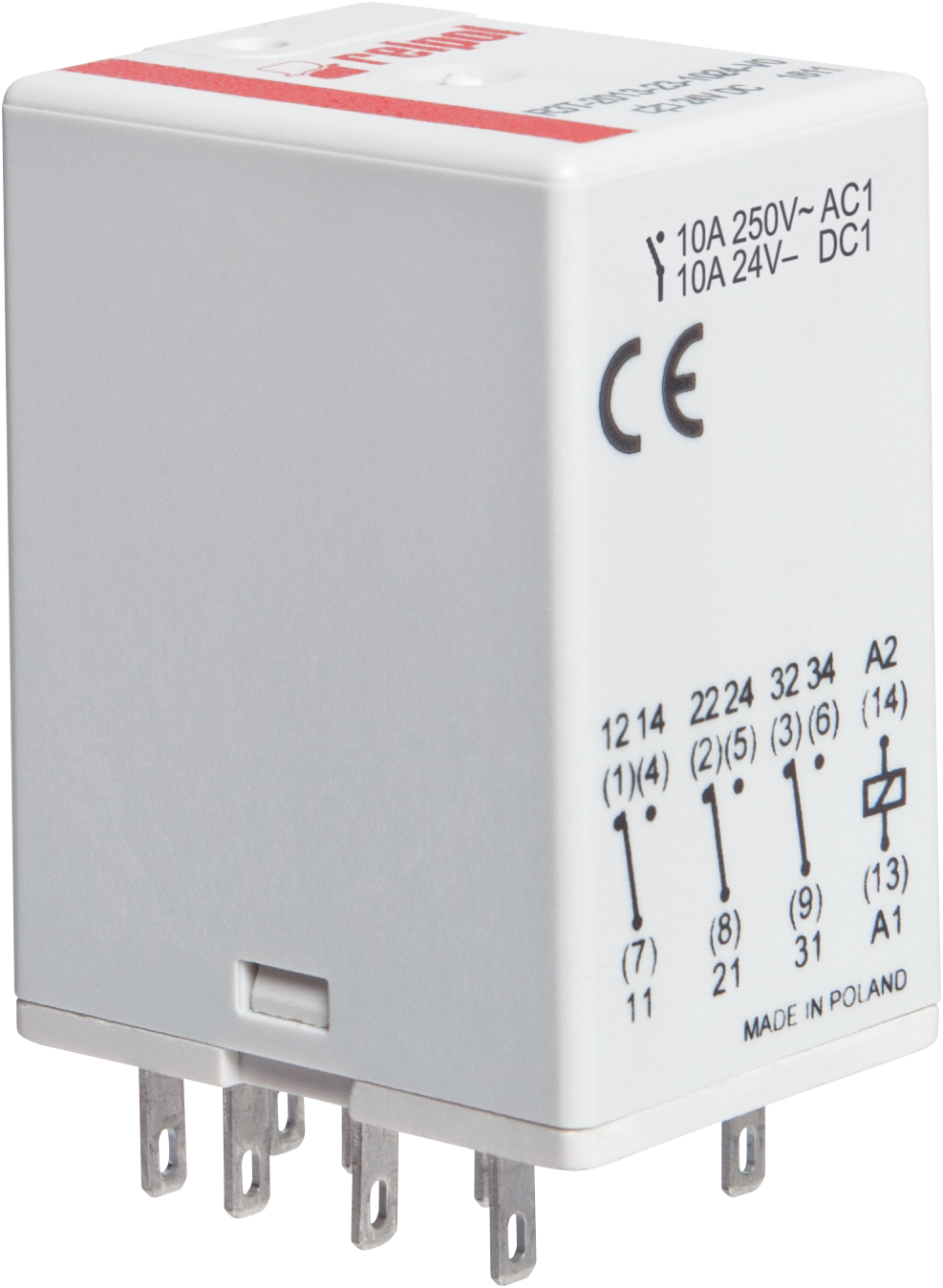

R3T railway

2 variants

Relays for railroad industry - interface R3T-2013-23-1024-V0, 3 CO. Contact material: AgNi. Voltage coil 24 V DC. Rated load AC1 10 A / 250 V AC. Mounting: for plug-in sockets. Cover protection category IP 20.

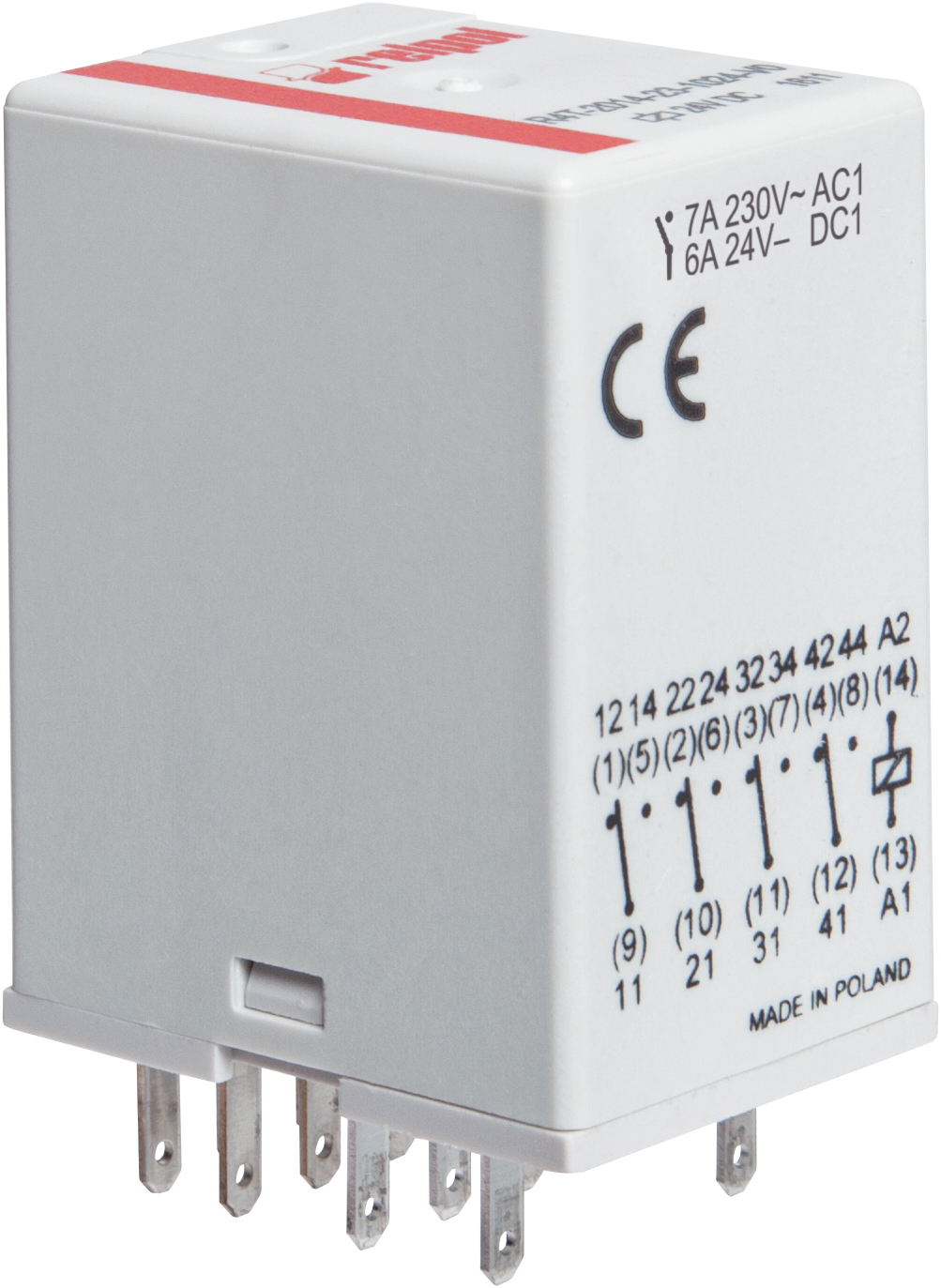

R4T railway

2 variants

Relays for railroad industry - interface R4T-2014-23-1024-V0, 4 CO. Contact material: AgNi. Voltage coil 24 V DC. Rated load AC1 7 A / 230 V AC. Mounting: for plug-in sockets. Cover protection category IP 20.

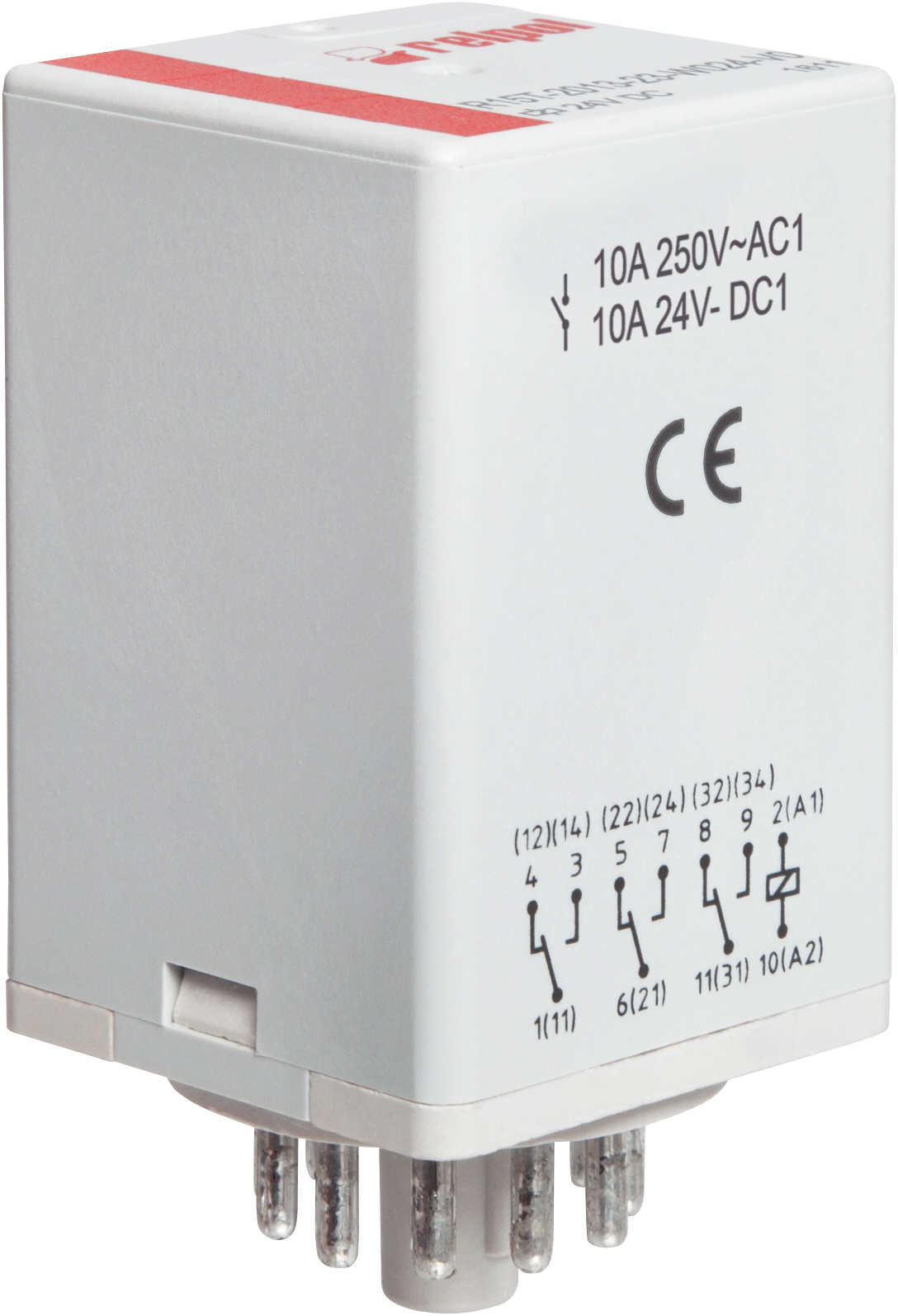

R15T railway

4 variants

Relays for railroad industry - interface R15T-2012-23-W024-V0, 2 CO. Contact material: AgNi. Voltage coil 24 V DC. Rated load AC1 10 A / 250 V AC. Mounting: for plug-in sockets. Cover protection category IP 20.

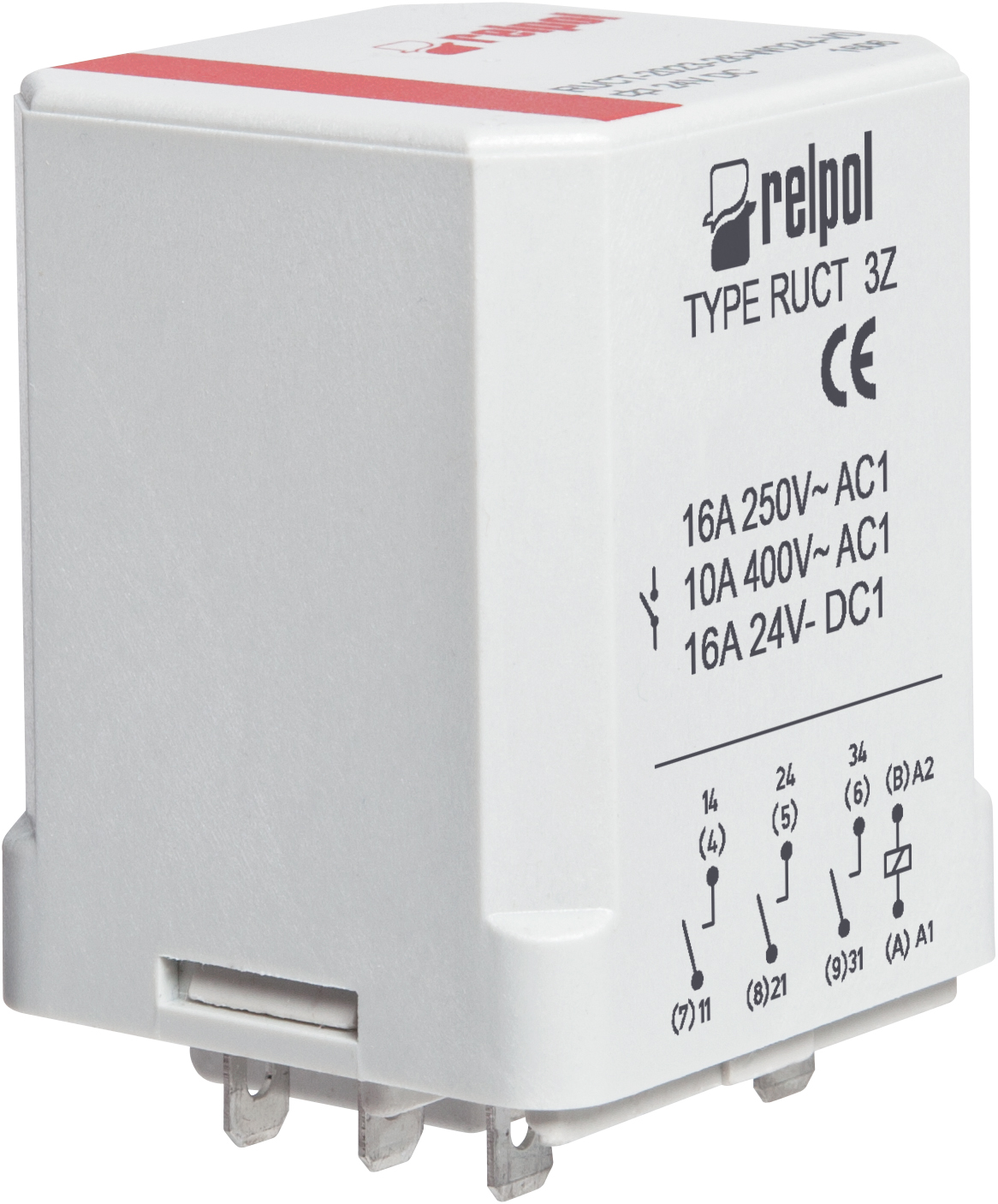

RUCT railway

4 variants

Relays for railroad industry - interface RUCT-2013-26-W024-V0, 3 CO. Contact material: AgNi. Voltage coil 24 V DC. Rated load AC1 16 A / 250 V AC. Mounting: for plug-in sockets. Cover protection category IP 00.

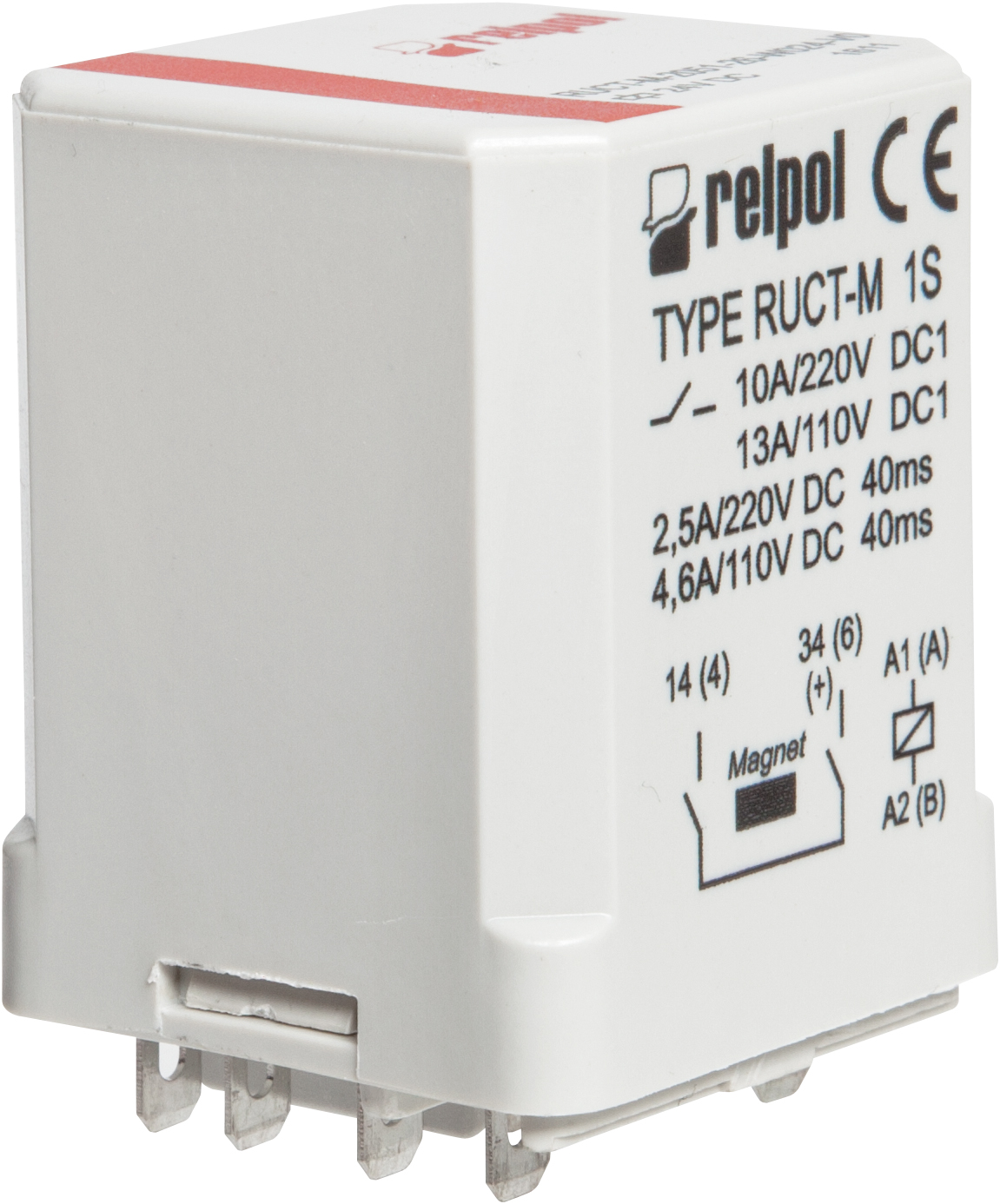

RUCT-M railway

4 variants

Relays for railroad industry - interface RUCT-M-2051-26-W024-V0, 1 NO (double-break), contact gap ≥ 5 mm (2,5+2,5). Contact material: AgNi. Voltage coil 24 V DC. Rated load AC1 16 A / 250 V AC. Mounting: for plug-in sockets. Cover protection category IP 00.
